Rig Portfolio

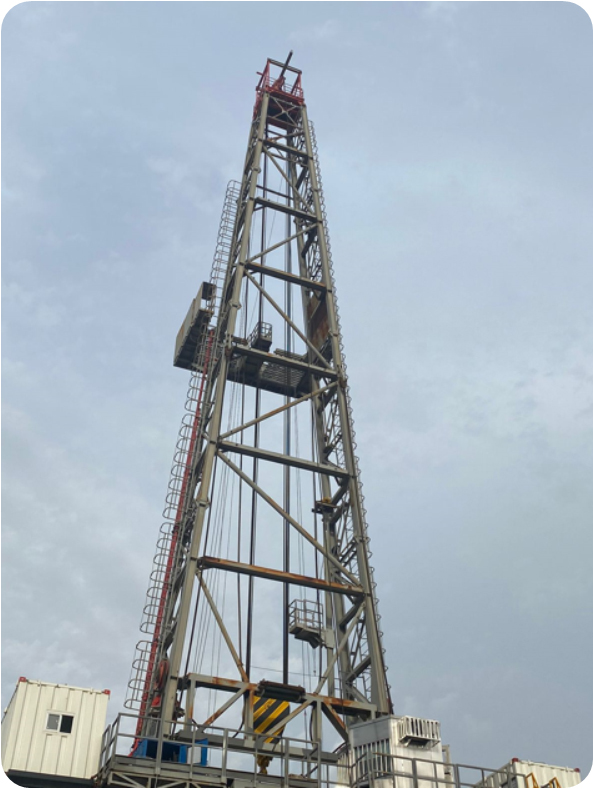

RG-101 RG ZJ 70 DB5 (2000 HP)

Rated WO Depth : 7000 Meter with 4-1/2" DP
Draw Works : 2000 HP JC70DB AC Motor Driven
Mast : 147 ft, Capacity of 1,000,000 lbs.
Sub Structure : Set back capacity of 600,000 lbs.
Engines : 4 X Cummins QSK-50 DPM Engines.
Generators : 4 X Stamford
SCR System : Siemens, S-120
Rotary Table : 37-1/2'' Independent driven with Split Bushing
Hoisting Equipment : 500 T Capacity
Top Drive : 500 Ton NOV II SA
Pump : 3 X 1600 HP Triplex
BOP Equipment : 21-1/4 " x 2M Diverter system
13-5/8" x 5000 psi Annular
13-5/8” x 10000 psi Double Ram
13-5/8” x 10000 psi Single Ram
Mud Tank System : 2200 bbl.
Drill Pipe : 5'‘ / 3-1/3’’ / 2-7/8’’ DP

RIG-2 ZJ 40 DBS HH(1300 HP)

Rated WO Depth: 3500 m with 5'' DP & 4000 m with 4-1/2" DP
Draw Works: 1300 HP
Mast: 137.8 ft Hydraulic Cantilever Mast 495,600 lbs
Sub Structure: Set back capacity of 264,317 lbs
Engines: 3 X CAT 3512 B + 1 x CAT 3406
Generators: 4 X 1200 Kva +1 x 292 KW
SCR System: AC-VFD Rig
Rotary Table: 27-1/2'' inch chain drive
Hoisting Equipment: 225 T capacity
Top Drive: 250 T, NOV 10 SA
Pump: 2 x HHF 1300
BOP Equipment: 21-1/4 " x 2M Diverter system | 13-5/8" x 5000 Psi Annular | 13-5/8” x 5000 Psi Double Ram
Mud Tank System:1600 bbl
Drill Pipe: 5'' G grade drill pipe 3500 m .

RIG-3 LTI AC (2000 HP)

Rated WO Depth: 21,000 ft with 5" DP
Draw Works: 2000 HP
Mast: 147 ft Hydraulic Cantilever Mast 1,000,000 lbs
Sub Structure: Set back capacity of 600,000 lbs
Engines: 4 X CAT 3512 C
Generators: 4 X 1950 KVA
SCR System: AC-VFD Rig
Rotary Table: 37-1/2'' inch opening chain drive
Hoisting Equipment: 500 T Capacity
Top Drive: 500 Ton DDTD
Pump: 3 X LEWCO 1600 HP
BOP Equipment: 21-1/4 " x 2M Diverter system 13-5/8" x 5000 psi Annular | 13-5/8” x 10000 psi Double Ram | 13-5/8” x 10000 psi Single Ram |
Mud Tank System: 2100 bbl
Drill Pipe: 5'' OD 6000 m & 3-1/2" OD 3000 m

RIG-4 S&S DRS-1000 (1000 HP)

Rated WO Depth: 11,200 ft. with 4-1/2'' DP
Draw Works: 1000 HP
Mast: Telescopic Mast of 440,000 lbs
Sub Structure: Parallelogram with Mud Board
Engines: Caterpillar C-16
Generators: Leroy Somer L6
SCR System: Mechanical Rig
Rotary Table: 27-1/2'' S&S
Hoisting Equipment: 200 T Capacity
Top Drive: 250 Ton Drillmec (Hydraulic)
Pump: 2 X LTI WH 1009
BOP Equipment: 13-5/8" x 5000 Psi Annular | 13-5/8” x 5000 psi Double Ram
Mud Tank System:1500 bbl
Drill Pipe: 5'' DP 3500 m.

RIG-5 ZJ 70D HH (2000 HP)

Rated WO Depth: 21,000 ft with 5" DP
Draw Works:2000 HP with Disk Brake
Mast: 147.0 ft, Capacity of 1,000,000 lbs.
Sub Structure:Set back capacity of 600,000 lbs..
Engines: 4 X Cummins KTA 50G
Generators:4 X Leroy somer (LSA)
SCR System: Transformer System with extra Circuit Breaker
Rotary Table: 37-1/2'' Independent driven with Split Bushing
Hoisting Equipment: 500 T Capacity
Top Drive: 500 Ton NOV 11SA
Pump:3 X 1600 HP Triplex
BOP Equipment: 21-1/4 " x 2M Diverter system | 13-5/8" x 5000 psi Annular | 13-5/8” x 10000 psi Double Ram | 13-5/8” x 10000 psi Single Ram
Mud Tank System: 2200 bbl
Drill Pipe: 5'' DP 20000 ft

RIG-27 HH ZJ 70D (2000 HP)

Rated WO Depth: 21000 ft with 5" DP
Draw Works: 1300 HP
Mast: 137.8 ft Hydraulic Cantilever Mast 495,600 lbs
Sub Structure: Set back capacity of 264,317 lbs
Engines: 3 X CAT 3512 B + 1 x CAT 3406
Generators: 4 X 1200 Kva +1 x 292 KW
SCR System: AC-VFD Rig
Rotary Table: 27-1/2'' inch chain drive
Hoisting Equipment: 225 T capacity
Top Drive: 250 T, NOV 10 SA
Pump: 2 x HHF 1300
BOP Equipment: 21-1/4 " x 2M Diverter system | 13-5/8" x 5000 Psi Annular | 13-5/8” x 5000 Psi Double Ram
Mud Tank System:1600 bbl
Drill Pipe: 5'' G grade drill pipe 3500 m.

RIG-28 HH ZJ 70D (2000 HP)

Rated WO Depth: 21000 ft with 5" DP
Draw Works: 2000 HP with Disk Brake
Mast: 147 ft, Capacity of 1,000,000 lbs.
Sub Structure: Set back capacity of 600,000 lbs.
Engines: 4 X Cummins KTA 50
Generators: 4 X Leroy somer (LSA)
SCR System: Transformer System with extra Circuit Breaker
Rotary Table: 37-1/2'' Independent driven with Split Bushing
Hoisting Equipment: 500 T Capacity
Top Drive: 500 Ton HH Make
Pump: 3 X 1600 HP Triplex
BOP Equipment: 21-1/4 " x 2M Diverter system | 13-5/8" x 5000 psi Annular | 13-5/8” x 10000 psi Double Ram | 13-5/8” x 10000 psi Single Ram
Mud Tank System: 2200 bbl
Drill Pipe: 5'' DP 20000 ft

RIG-31 ZJ 70D HH (2000 HP)

Rated WO Depth: 21000 ft with 5" DP
Draw Works: 2000 HP
Mast: 147 ft, Capacity of 1,000,000 lbs
Sub Structure: Set back capacity of 600,000 lbs
Engines: 4 X Cummins KTA 50G
Generators: 4 X Leoroy somer (LSA)
SCR System: Transformer system
Rotary Table: 37-1/2" Independent Driven With Split Bushing
Hoisting Equipment: 500 T capacity
Top Drive: 500 Ton NOV 11SA
Pump: 3 X 1600 HP Triplex .
BOP Equipment: 21-1/4 " x 2M Diverter system | 13-5/8" x 5000 psi Annular | 13-5/8” x 10000 psi Double Ram | 13-5/8” x 10000 psi Single Ram
Mud Tank System: 2000 bbl
Drill Pipe: 5'' DP 20000 ft

RIG-32 ZJ 70D HH (2000 HP)

Rated WO Depth: 21000 ft with 5" DP
Draw Works: 2000 HP
Mast: 147 ft, Capacity of 1,000,000 lbs. Cantilever Mast 1,000,000 lbs
Sub Structure: Set back capacity of 600,000 lbs.
Engines: 4 X Cummins KTA 50G
Generators: 4 X Leorroy somer (LSA)
SCR System: Righill Model RS-1800
Rotary Table: 37-1/2'' Model ZP-375
Hoisting Equipment: 500 T Capacity
Top Drive: 500 Ton NOV 11SA
Pump: 3 X F-1600
BOP Equipment: 21-1/4 " x 2M Diverter system | 13-5/8" x 5000 psi Annular | 13-5/8” x 10000 psi Double Ram | 13-5/8” x 10000 psi Single Ram
Mud Tank System: 2200 bbl
Drill Pipe: 5'' DP 20000 ft

RIG-37 SJ PETRO (900 HP)

Rated WO Depth: 8000 ft with 3-1/2" DP
Draw Works: 900 HP
Mast: 124.67 ft, Telescopic Mast
Sub Structure: Parallelogram .
Engines: 2 x CATERPILLAR, C 15
Generators: N/A
SCR System: N/A
Rotary Table:27-1/2'' Model ZP-275
Hoisting Equipment: 180 MT Capacity
Top Drive: DRILCO Make 3-1/2"sq KELLY
Pump: 1 x GD Make PZ9
BOP Equipment: 7-1/16” x 5000 psi x Ram and Annular
Mub Tank System: 600 bbl

RIG-38 SJ PETRO (900 HP)

Rated WO Depth: 8000 ft with 3-1/2" DP
Draw Works: 900 HP
Mast: 124.67 ft, Telescopic Mast
Sub Structure: Parallelogram
Engines: 2 x CATERPILLAR, C 15
Generators: N/A
SCR System: N/A
Rotary Table: 27-1/2'' Model ZP-275
Hoisting Equipment: 180 MT Capacity
Top Drive: DRILCO Make 3-1/2"sq KELLY
Pump: 1 x GD Make PZ9
BOP Equipment: 7-1/16” x 5000 psi x 2 Ram and Annular
Mud Tank System: 600 bbl.

RIG-39 ZJ 40 (1000 HP)

Rated WO Depth: 11500 ft with 4-1/2" DP
Draw Works: 1000 HP
Mast: 128.93 ft, Capacity of 562,022 LBS
Sub Structure: Set back capacity of 250,000 LBS
Engines: 2 x Caterpillar C-15
Generators: N/A
SCR System: N/A
Rotary Table: 27-1/2'' Model ZP-275
Hoisting Equipment: 250 T Capacity
Top Drive: 250 Ton
Pump: 2 x F-1300
BOP Equipment: 13-5/8" x 10000 Psi
Mud Tank System: 1800 bbl
Drill Pipe: 4.5" DP 12000 ft

WOR-1 SHANDONG KERUI (650 HP)

Rated WO Depth: 8000 ft with 3.5" DP
Draw Works: 650 HP
Mast: 118.4 ft TELESCOPIC
Sub Structure: Parallelogram
Engines:2 x CATERPILLAR
Generators: N/A
SCR System:N/A
Rotary Table: 27-1/2'' Model ZP-275
Hoisting Equipment: 180 MT Capacity
Top Drive: DRILCO Make 3-1/2"sq KELLY
Pump: 1 x GD Make PZ9
BOP Equipment: 7-1/16” x 5000 psi x Ram and Annular
Mud Tank System: 1200 bbl

WOR-2 SHANDONG KERUI (650 HP)
